HB MOTOR SERIES
SPECIFICATION
Model
Step
Exitation
Drive
Current
Resistance
Induc-tance
Holding
Rotor
Weight
Number
Angle
mode
voltage
Phase
Phase
Phase
Torque
Inertia
Degree
°
V
Amp
ohm
mH
Kg.cm
g.cm
2
kg
35BYG001
1.8
Bipolar
10
0.5
20
18
1.0
12
0.12
35BYG002
1.8
Unipolar
12
0.3
40
26
0.7
12
0.12
35BYG003
1.8
Unipolar
4.5
0.75
6
7.2
1.1
14
0.18
*Only representative products listed in the Table
FIGURE:
WIRING DIAGRAM

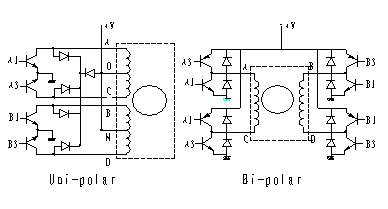

DRIVE CIRCUITRY
