PM MOTOR SERIES
SPECIFICATION:
Model
Step angle
Excitation mode
Voltage
Current
Resistence
Holding torque
Detent torque
Rotor inertia
°
.
V
A
Ω
g.cm
g.cm
g.cm
2
15BY45S-1
18
Bipolar
5
0.50
10
25
10
0.60
15BY45-2
18
Bipolar
12
0.12
100
23
10
0.60
15BY45-3
18
Bipolar
5
0.17
30
27
10
0.60
*Only representative products listed in the Table

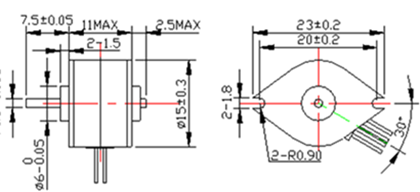

FIGURE:
WIRING DIAGRAM

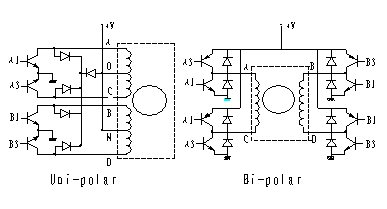

DRIVE CIRCUITRY
